Control module

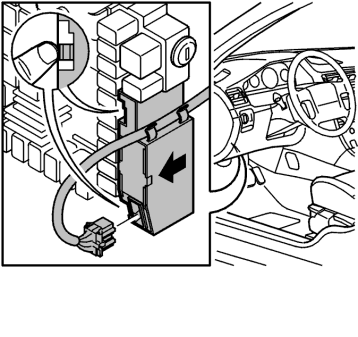

Fig 1: Identifying Pressing Catches To Pull Back (Remove) Control Module
GLL103213Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the control module by pressing the 2 catches using a finger and pulling the control module backwards (see the arrow).

Remove the connector and the cable.
