Solenoid, steering gear, replacement: Removing

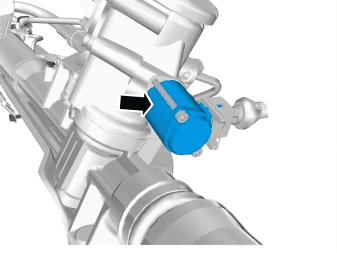

Fig 1: Identifying Steering Gear Solenoid

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the car and remove the front wheel on the left side.

Remove:

• protective cover under engine (applies to some versions)
• protection over the drive axle for better access (applies to some versions)

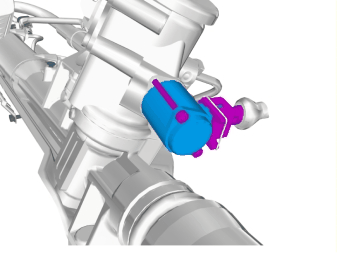

Fig 2: Identifying Solenoid, Connector & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place a container under the steering gear to collect the oil.

Remove:

• the connector
• the screws, 2 pcs., for the solenoid
• the solenoid.
