Solenoid, steering gear, replacement: Installing

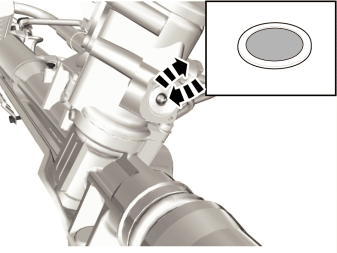

Fig 1: Identifying Steering Gear Filter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Change the filter in the steering gear to the new one included in the kit.

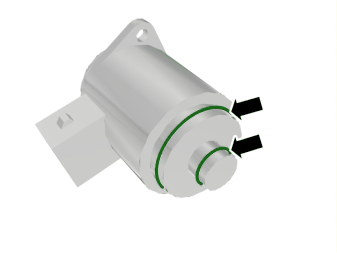

Fig 2: Identifying Solenoid Seals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lube the solenoid's seals with some oil.

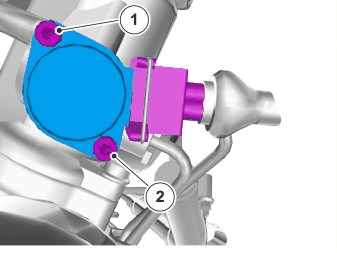

Fig 3: Identifying Solenoid & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the solenoid with the new screws, 2 pcs., included in the kit and tighten alternately to contact.

Tighten in the following order:

1. (1) 0.5 Nm
2. (2) 1.5 Nm
3. (1) 2.9 Nm
4. (2) 2.9 Nm

Plug in the connector for the solenoid.
