Installing the outer steering arm

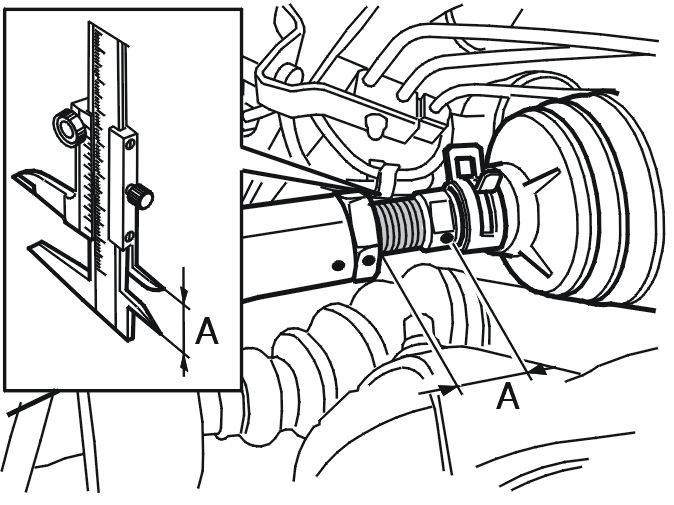

Fig 1: Identifying Distance Between Lock Nut & Edge Of Wrench Grip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the outer steering arm. Ensure that the markings and the measurements more or less correspond
• the steering arm on the wheel spindle. Use a counterhold and tighten. For tightening torques, see Tightening torque .

Adjust so that the markings and measurement A correspond to the tightened lock nut.

Tighten the locknut. For tightening torques, see Tightening torque .

Install the wheels. See Installing wheels .
