Installing limiter

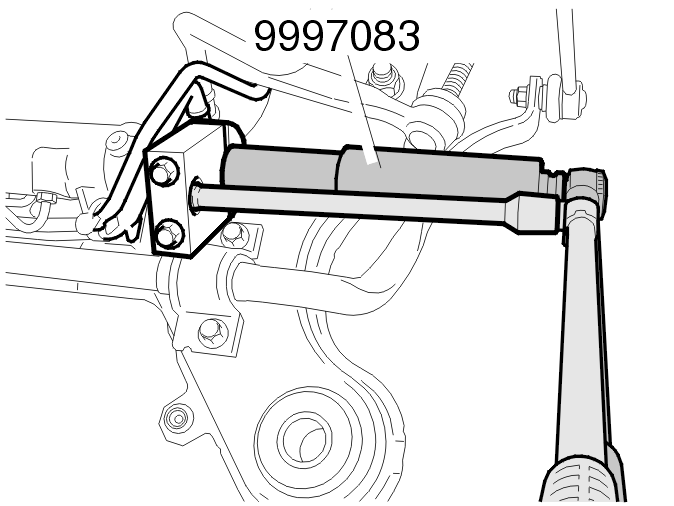

Fig 1: Identifying Steering Arm Tool (999 7083)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the new limiter
• the tie rod. Use thread sealant 1161053  . For tightening see Tightening torque .

Remove counterhold 9997020 and socket 9997083 .

Clean the steering rack after removing the tools. Check the steering rack for damage.
