Internal pipe steering gear: Removal

Remove the steering gear. See Replacing the steering gear

NOTE: Seal the servo pump's inlet and outlet connections with plastic plugs immediately after removal

Fig 1: Identifying Oil Pipes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective plate above the pipes.

Clean around the oil pipe connections and blow dry.

Remove the pipes.

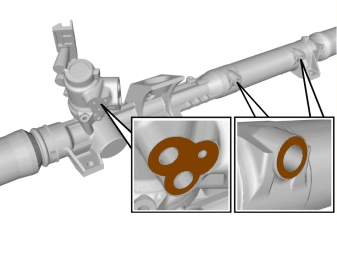

Fig 2: Identifying Oil Pipe Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that all remnants of the old sealing rings have been removed from the connections on the steering gear.
