Installing the inner steering arm

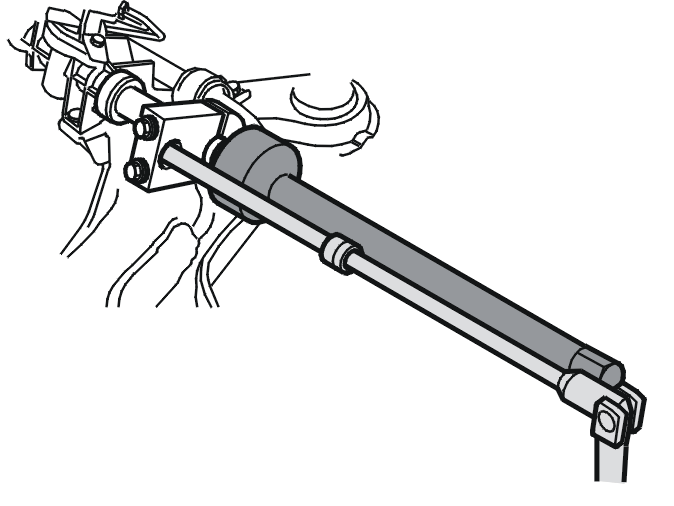

Fig 1: Connecting Rods On Steering Arm From Steering Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the inner tie rod.

Use thread sealant 1161053  .

Tighten. See Tightening torque .

Use tool 9997019 .

Remove the counterhold.

Clean the steering rack after removing the tool. Check the steering rack for damage.
