Installing the boot

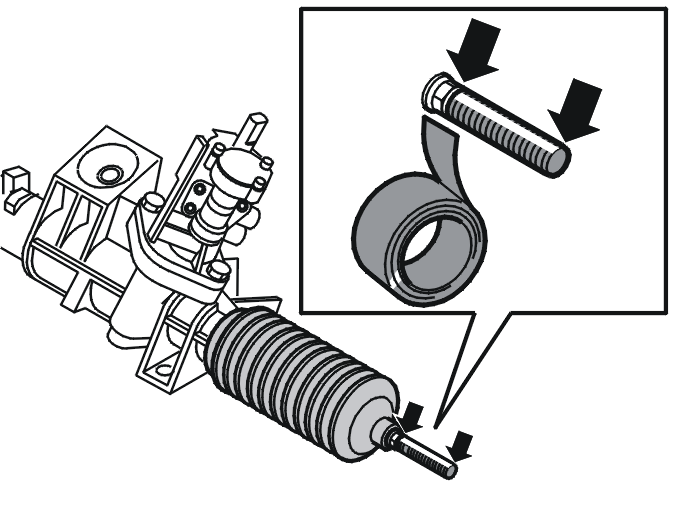

Fig 1: Ensuring That Tape Is In Place On Threads

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the boot is undamaged.

Use a new boot if in any doubt.

Tape the threads on the inner steering arm to protect the boot when installing.

Install the boot using new clamps.

Remove the tape.
