Pressure pipe/hose, steering gear, replacement: Installation: Finishing

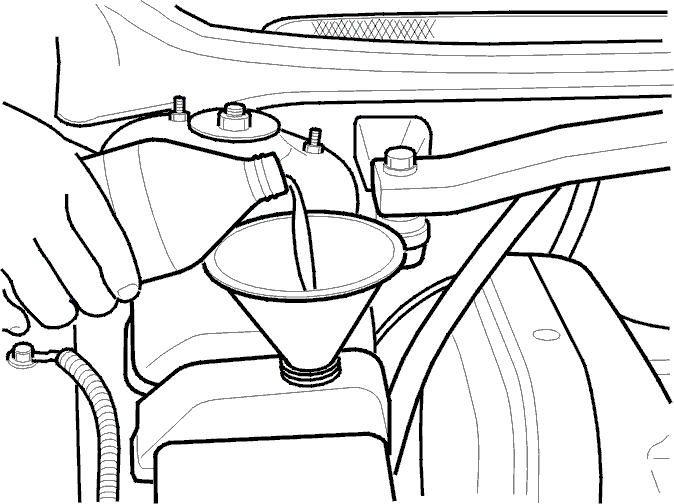

Fig 1: Filling Servo Reservoir With Oil

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the battery lead.

WARNING: Avoid skin contact with the oil.

NOTE: For the correct oil grade use Volvo power steering Fluid P/N 1161529.

Fill the power steering reservoir with oil. Bleed the system.

Turn the steering wheel from lock to lock several times. Top up with oil as necessary.

Lower the vehicle.

Apply the parking brake. Start the engine.

Turn the steering wheel slowly to the right, keep it at the limit position for two seconds.
Turn the steering wheel slowly to the left, keep it at the limit position for two seconds.

Repeat steps A and B ten times.
