Installing pulley, alternative 2

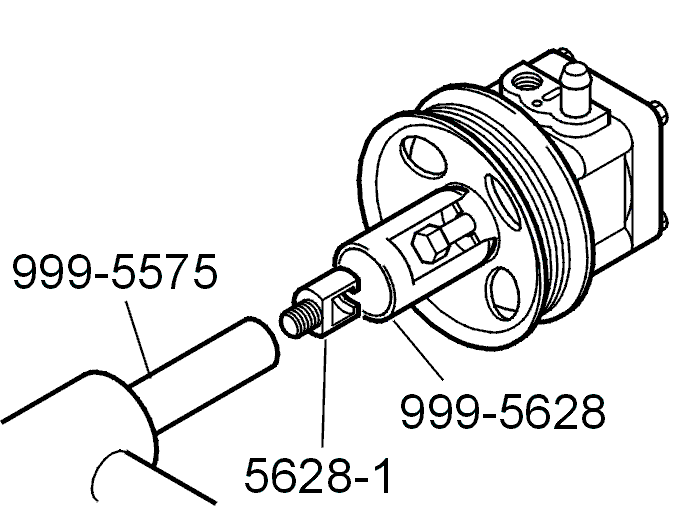

Fig 1: Installing Pulley Using A Screw With Correct Thread

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screw on the pump shaft.
NOTE: Use a screw with the correct thread (M8 x 75 mm (M8 x 2.95 in)).
Install special tool 9995628 on the compression tool 9995575 .
Lubricate the pump shaft and install the pulley.
Install tool 9995628
on the pulley.
Hook on tool 9995628 on the pump shaft screw.

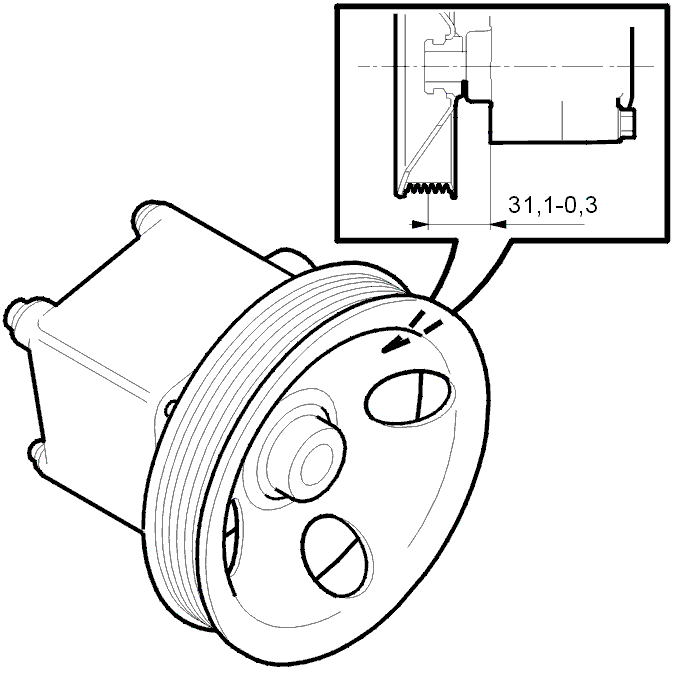

Fig 2: Pulley Measurements

Courtesy of VOLVO CARS OF NORTH AMERICA.
