Installing pulley, alternative 1

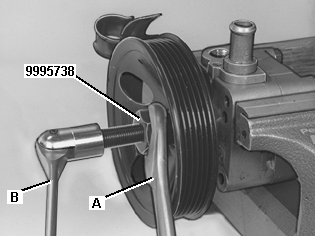

Fig 1: Installing Pulley
GLL103960Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the pulley. Lubricate pump shaft with oil

Use press tool 9995738 .
