Removing drive belt

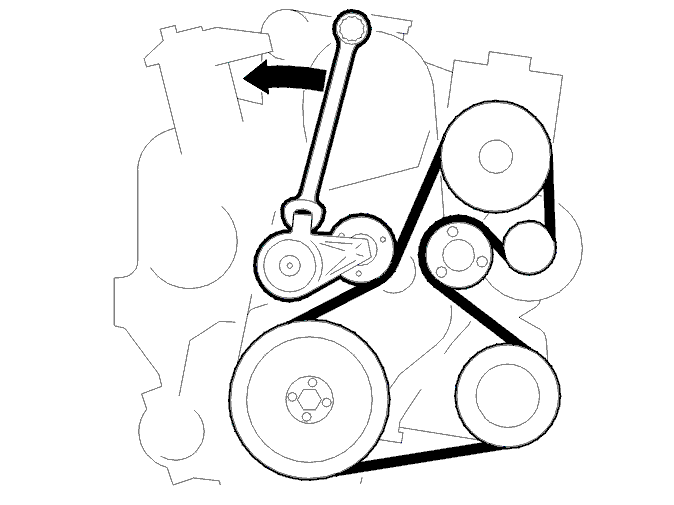

Fig 1: Drive Belt From Power Steering Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the drive belt from the power steering pump
• Use a fixed wrench and turn clockwise to take the load off the automatic tensioner
• Remove the drive belt.

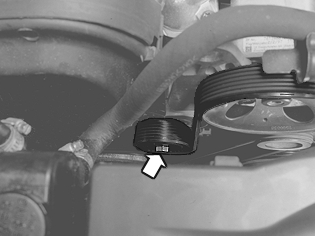

Fig 2: Auxiliaries Belt

Courtesy of VOLVO CARS OF NORTH AMERICA.

Diesel only:

Remove the auxiliaries belt. Turn the timing belt tensioner lug counter-clockwise with an open wrench.
