Installing the pressure hose

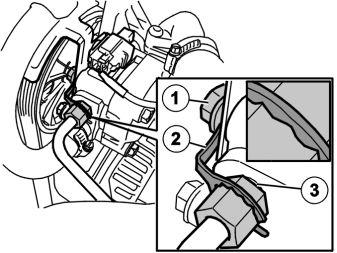

Fig 1: Identifying Screw, Lock Bracket & Pipe Coupling Area At Power Steering Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the screw clip on the sub-frame. Tighten to 10 Nm .

Install:

the pipe nipple in the pump. Tighten to 25 Nm
the lock bracket (2).

Tighten the screw (1). Tighten to 24 Nm .

NOTE: There may be a gap (3) of a few millimeters between the pipe coupling and the power steering pump. Bend the bracket so that the twelve edged mounting on the bracket is on the nut.
