Connecting the manometer, applies to model years up to and including 2004

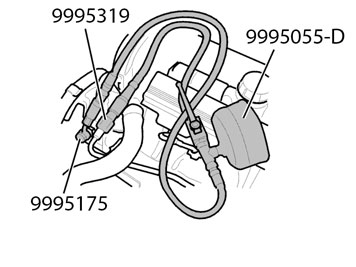

Fig 1: Identifying Manometer Connectors, Hoses & Gauge
GLL172720Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect 9995055 version D, between the pump and the steering gear's pressure hose.

Use: 9995175 and 9995319 .

Connect 9995175 with the pipe screws and the washers from 9995319 .

NOTE: Connect the hose from the pressure gauge valve to the steering gear's pressure hose. The valve should be parallel with the hose.

Remove:
