Diagnostic trouble code (DTC) information SRS-0214

Condition

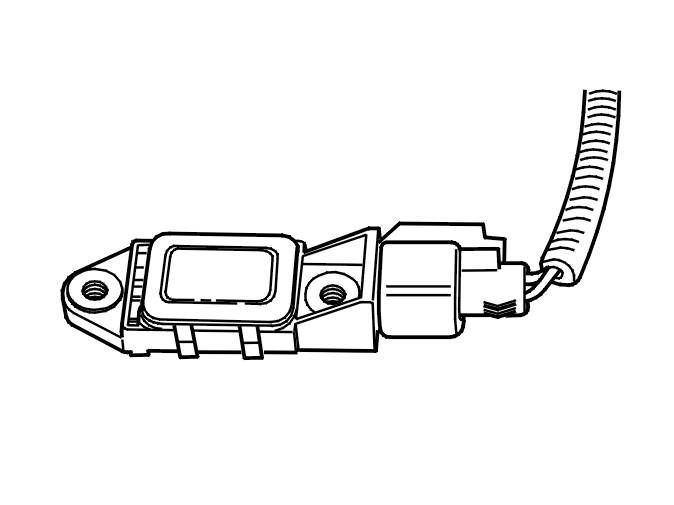

Fig 1: Identifying Front Right Front Impact Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

The Supplemental Restraint System Module (SRS) checks the signal from the front right front impact sensor.

Diagnostic trouble code (DTC) SRS-0214 is stored if the resistance in the signal cable wiring circuit is lower than 10 Ω for longer than 10 seconds.

Diagnostic trouble code (DTC) SRS-0214 can be diagnosed in ignition positions I, II or III.

Substitute Value

• None.

Possible Source

• If the Supplemental Restraint System Module (SRS) identifies that a front right front impact sensor is installed, despite the control module being programmed that a front impact sensor is not installed.

Fault symptom[s]

• The SRS indicator lamp is lit.
