Home >> Volvo >> 2004 >> S80 Base, 2.5 59, FWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior Equipment - Removal, Replacement And Installation >> Steering Wheel Module (1999-2006) >> RTI switch >> Removal

RTI switch: Removal

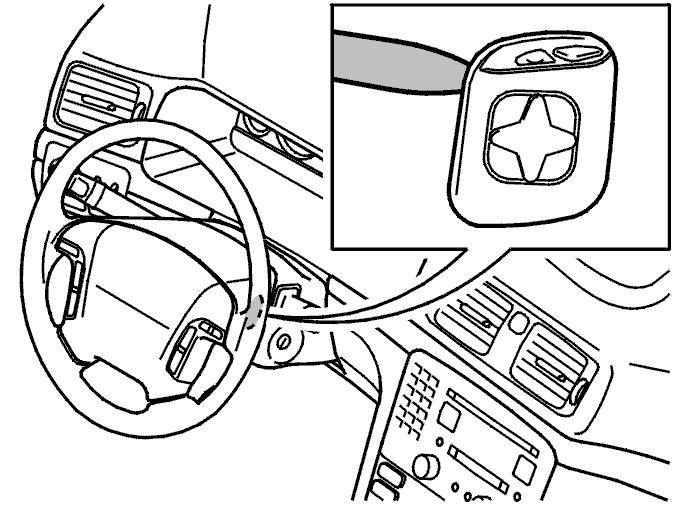

Fig 1: Identifying RTI System
GLL103196Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully detach the switch using a weatherstrip tool.

Disconnect the connector.

Install in the reverse order.
