Inflatable curtain module: Removal

Fig 1: Identifying Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The hose clamp must not be opened under any circumstances. If the clamp is opened, it will not be possible to guarantee the safety of the joint. Leakage may result which would compromise the function.

Remove:

The headlining. See Headlining, replacing .

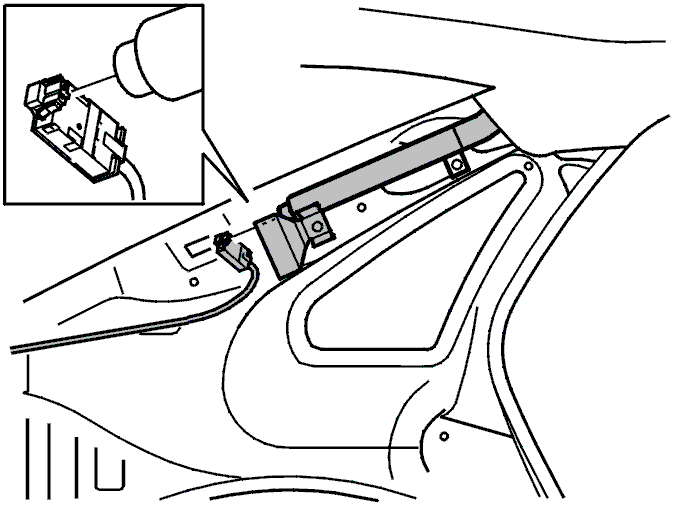

Fig 2: Identifying Igniter Wire Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector according to Igniter wire connector .

Fig 3: Identifying Screws And Clips (G & D)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

clips G and D
the screw (3) and unhook the inflatable curtain module.

(6 and 7 are removed when removing the grab handle)

Fig 4: Identifying Screws And Clips (C & E)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

clips C and E
screws 1, 2 and 8. Lift out the inflatable curtain module.

(4 and 5 are removed when removing the grab handle)

Fig 5: Identifying Deflector Clips (A & B)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

deflector clips A and B
the deflector.
