Inflatable curtain module: Installation

Fig 1: Identifying Deflector Clips (A & B)

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

If the inflatable curtain module is dropped, it must not be installed.

Install:

NOTE:

The deflector on the C/D post must be installed before the inflatable curtain module is installed

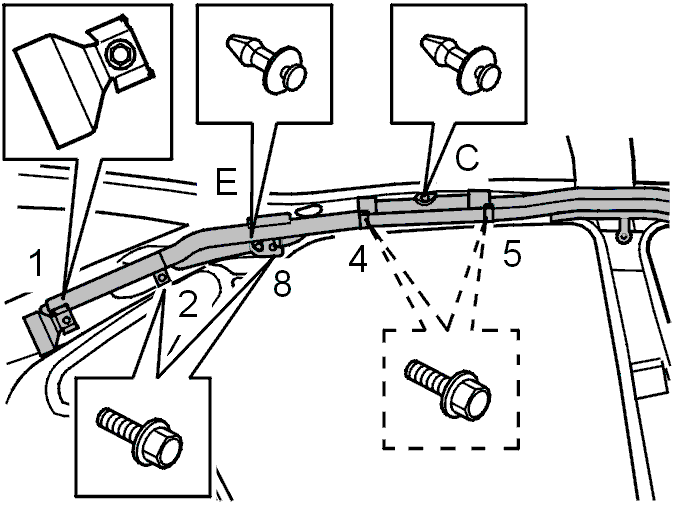

Fig 2: Identifying Screws And Clips (C & E)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Remove the packaging by pulling it straight downwards.

NOTE:

Ensure that no bits of paper remain.

Install:

(4 and 5 are installed when installing the grab handles)

Fig 3: Identifying Screws And Clips (G & D)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook on the inflatable curtain module. Install screw 3.

NOTE:

It is very important that the hook is correctly installed.

Install:

(6 and 7 are installed when installing the grab handles)

Tighten screws 1-7. Tighten to 10 Nm.

Install:

CAUTION:

When replacing the inflatable curtain module, part of the decal on the curtain must be torn off and stuck on the decal in the door opening.
