Removing driver's airbag (SRS)

Fig 1: Identifying Slackening Off Screws From Back Of Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the steering wheel so that there is enough space for tools.

Slacken off the two screws positioned at 45 degrees on the reverse of the steering wheel.

Pull out the airbag to access the connectors.

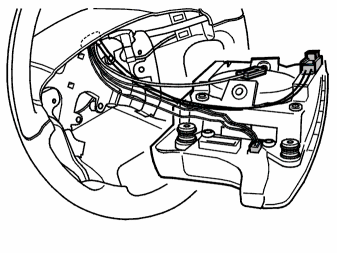

Fig 2: Identifying Steering Wheel SRS Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the SRS ignition cable connector. See: Igniter wire connector
• the 2 connectors (there may be more or fewer).

Remove the airbag.

Transfer the keypads/ covers. See: Keypad unit, steering wheel, replacing .
