Center console, replacing

Remove:

• the parking brake panel. See Parking brake panel
• the gear selector panel. See Gear selector panel .

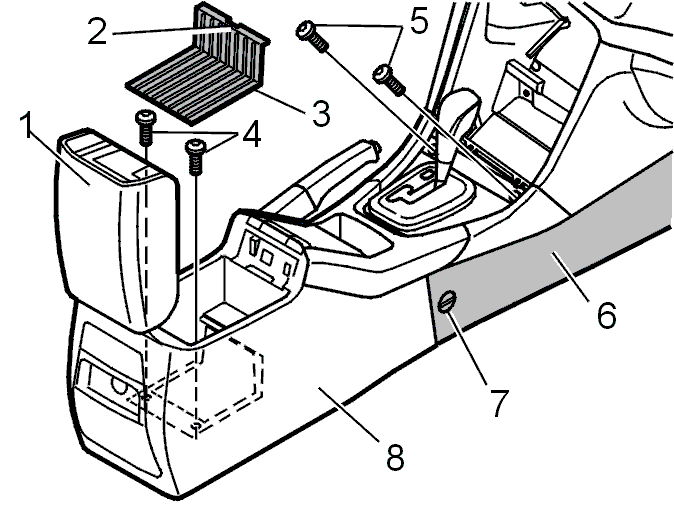

Fig 1: Identifying Center Console Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

• four screws.

• the side panel. See Side panel
• rear ashtray. See Rear ashtray
• the connector
• the center console.

Install:

In reverse order.

Transfer those components that do not need to be replaced.
