Removing steering column covers

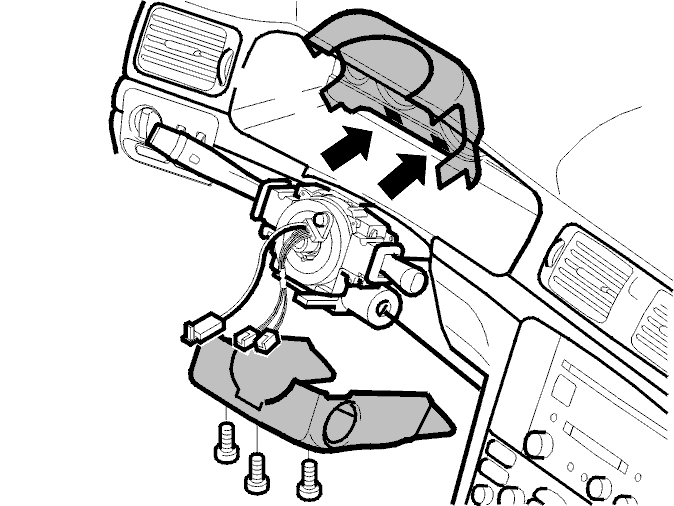

Fig 1: Identifying Steering Column Covers Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove three screws.

Pull the steering wheel as far out as possible.

Remove the clip mounting between the covers.

Remove the lower steering column cover.

Remove the seal for the clip mounting at the dashboard.

Remove the upper steering column cover.
