Resistance values, evaporator temperature sensor
The component specification gives the value of the component without the connector connected.
RESISTANCE VALUES, EVAPORATOR TEMPERATURE SENSOR
| Measurement values, resistance | Other |
| -40°C = approximately 91.8 kΩ -35°C = approximately 66.3 kΩ -30°C = approximately 48.4 kΩ -25°C = approximately 35.7 kΩ -20°C = approximately 26.6 kΩ -15°C = approximately 20.0 kΩ -10°C = approximately 15.2 kΩ -5°C = approximately 11.6 kΩ 0°C = approximately 9.0 kΩ 5°C = approximately 7.0 kΩ 10°C = approximately 5.5 kΩ 15°C = approximately 4.3 kΩ 20°C = approximately 3.5 kΩ 25°C = approximately 2.7 kΩ 30°C = approximately 2.2 kΩ 35°C = approximately 1.8 kΩ 40°C = approximately 1.5 kΩ 45°C = approximately 1.2 kΩ 50°C = approximately 1.0 kΩ 55°C = approx. 826 Ω 60°C = approx. 688 Ω 65°C = approx. 576 Ω 70°C = approx. 485 Ω 75°C = approx. 409 Ω 80°C = approx. 347 Ω 85°C = approx. 296 Ω 90°C = approx. 253 Ω 95°C = approx. 217 Ω 100°C = approx. 187 Ω |

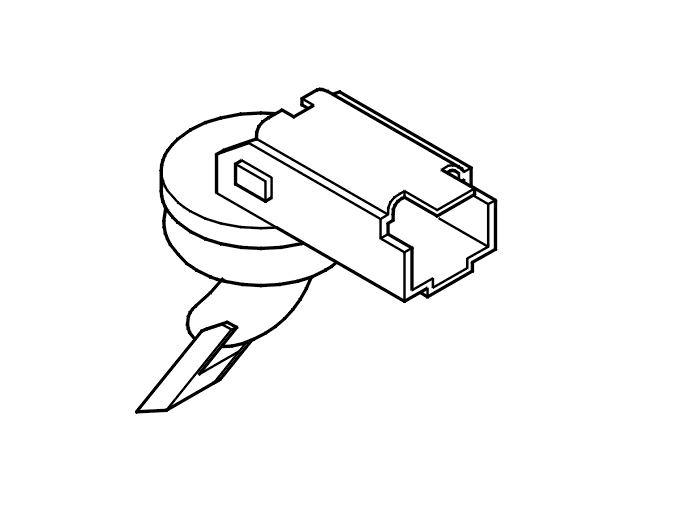

Measure the resistance between terminals #1 and #2. |
