Fan motor

Removal

Fig 1: Detaching Floor Carpet At Front

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the sill trim panel. See Front door sill trim panel
• the soundproofing panel. See Soundproofing panel, replacing
• side panel on the center console. See Replacing the side panel
• the glove compartment. See Glove compartment, replacing
• any mounting hooks for child seats
• detach the drain hoses from the engine and the filter housing. Move the drain hoses to one side
• detach the floor carpet at the front. Fold the carpet back.

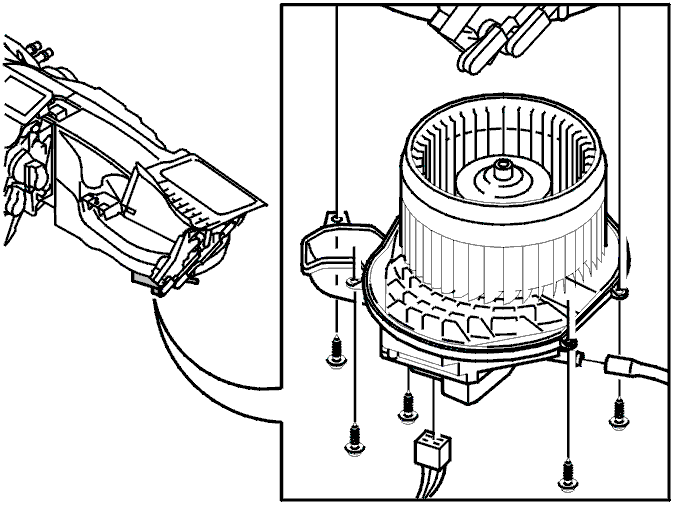

Fig 2: Identifying Blower Fan Motor Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Engine

Remove:

• disconnect the connector
• the 5 screws for the blower fan motor
• detach and remove the blower fan motor.

Engine

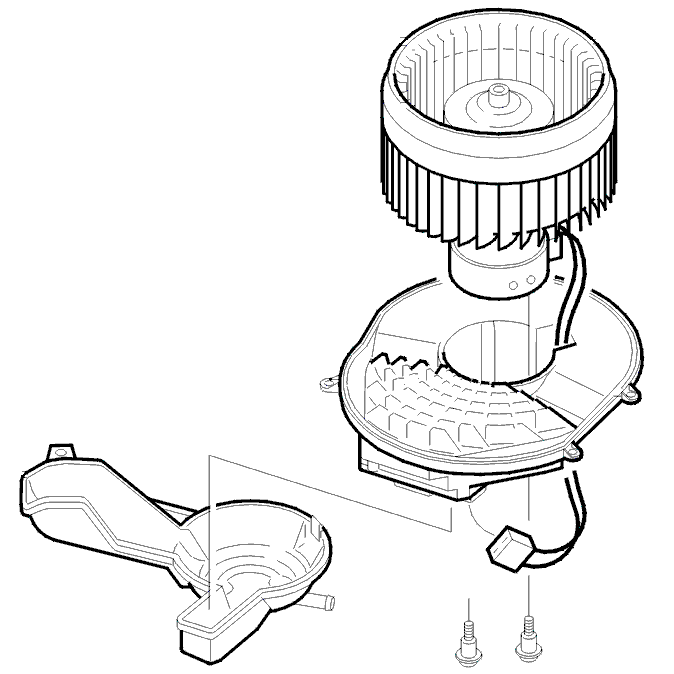

Fig 3: Connector Cover From Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the connector
• detach the cover from the motor
• the 2 screws on top
• press and pull out the motor and fan hub. Use a screwdriver for example.

Installation

Install in reverse order.
