Installing the sensor

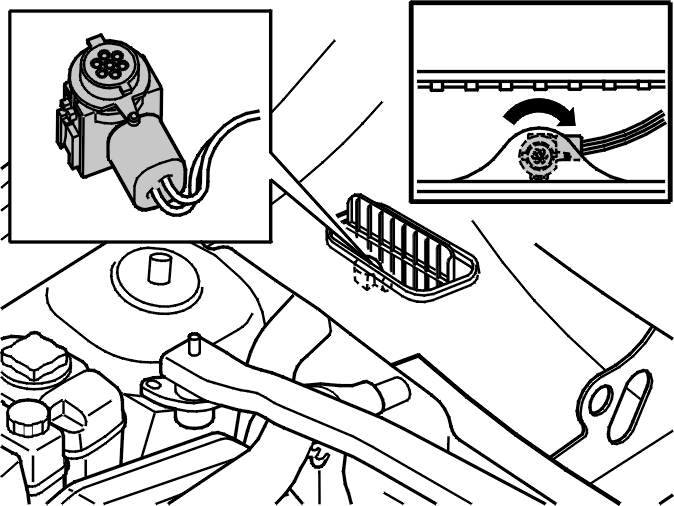

Fig 1: Identifying Air Quality Sensor Installation
GLL107514Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector.

Insert the cable through the hole as far as possible.

Place the sensor with seal (the smooth side facing upward) in the groove.

Turn the sensor about 60° clockwise until it stops. Check that the air quality sensor is secured properly.

Make sure the cable is pulled in as far as possible.
