Installing sensor

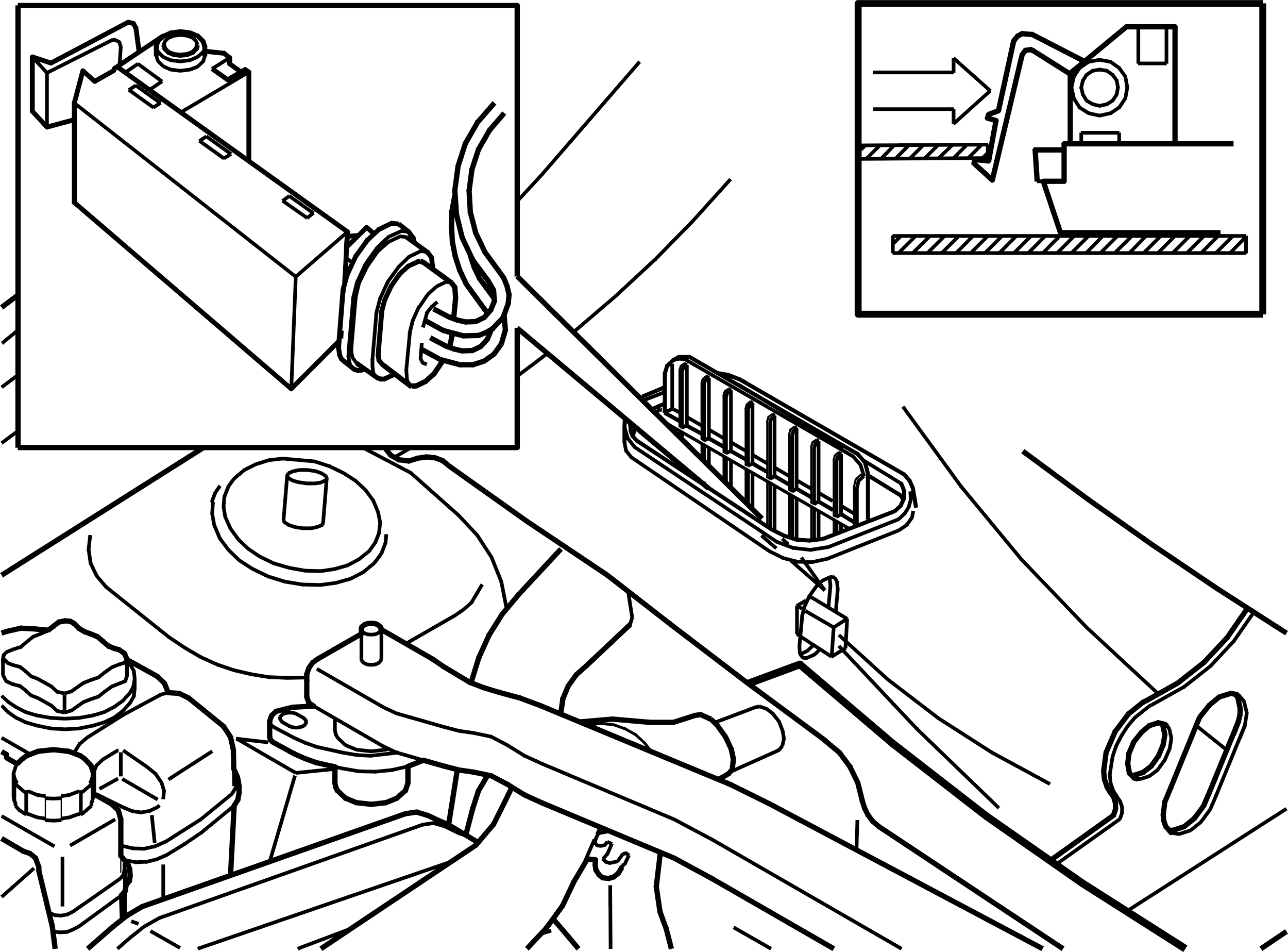

Fig 1: Identifying Catches & Connector
GLL107484Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector.

Insert as much of the cable through the hole as possible.

Position the rear section of the sensor with the switch.

Press the catches in. Press the air quality sensor into place.

Check that the sensor is securely in place.
