Filling with fluorescent tracing agent
When replacing components in the climate control system, the component (for example the drier) can be filled with tracing agent.
Filling an empty climate control system with tracing agent when a leak cannot be localized

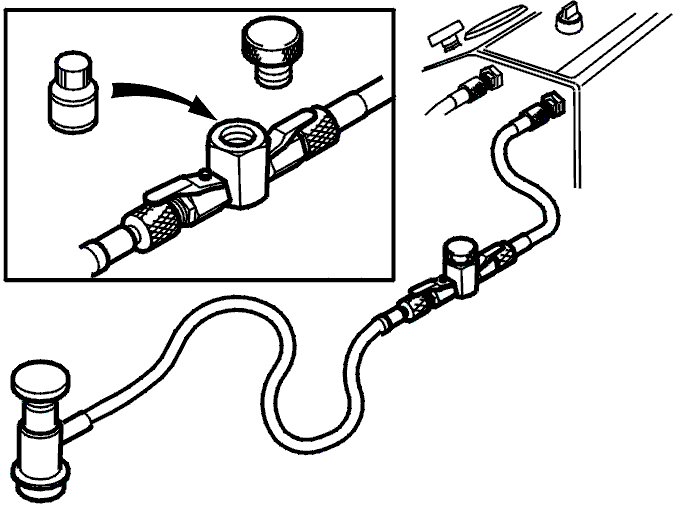

- Fill with 225g of refrigerant with fluorescent tracing agent according to the manufacturers instructions for leak tracing.
If the climate control system is filled
- Drain off 225 g of refrigerant, see Refrigerant, draining
- Fill the climate control system with refrigerant with tracing agent according to the manufacturers instructions
- Leak trace according to Leak tracing, fluorescent tracing agent / UV lamp .
If the amount of refrigerant in the climate control unit cannot be determined
- Drain the climate control system according to Refrigerant, draining
- Fill the climate control system with refrigerant with tracing agent according to the manufacturers instructions
- Leak trace according to Leak tracing, fluorescent tracing agent / UV lamp .
