Replacing Sealing Rings

WARNING: This page is about a different variant/trim than selected.

Remove the sealing rings from the transmission. See Fig 1.

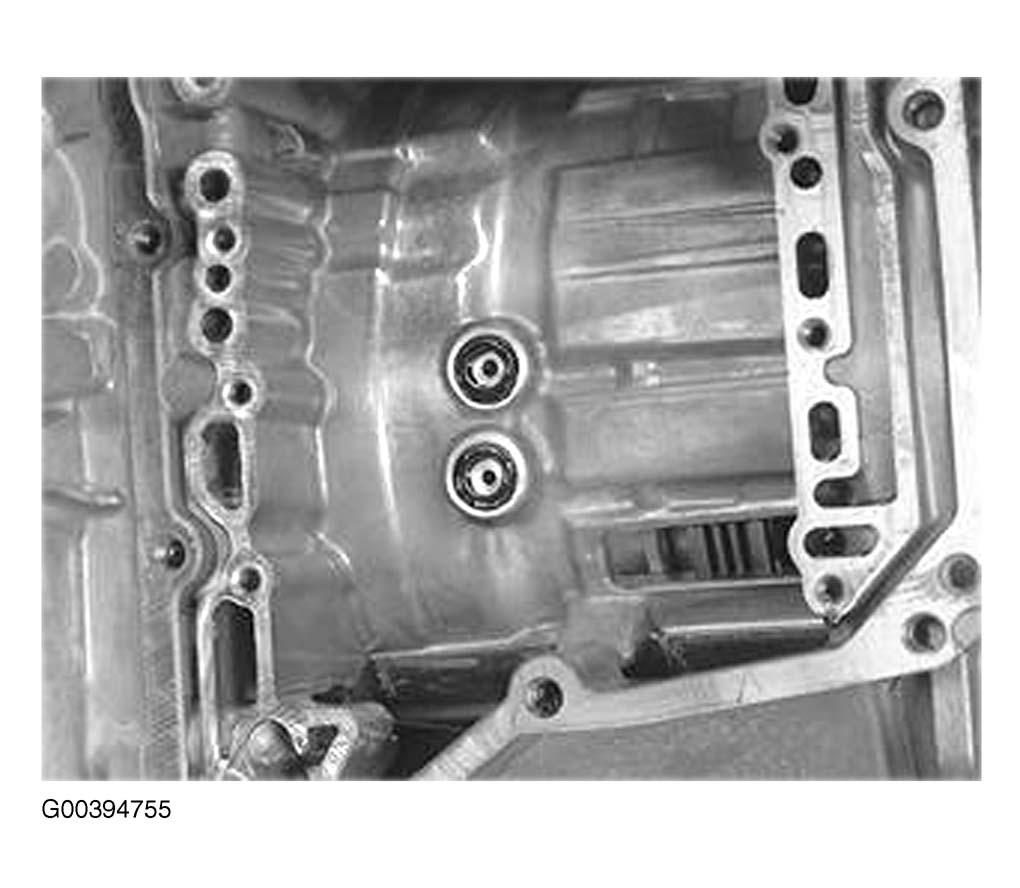

Fig 1: Locating Sealing Rings

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that no debris enters the transmission.

Install new seals in the transmission. Use petroleum jelly to hold the seals in position.
