Removing The Control System

WARNING: This page is about a different variant/trim than selected.

Remove the screws from the control system. See Fig 1. Remove the cover from the transmission.

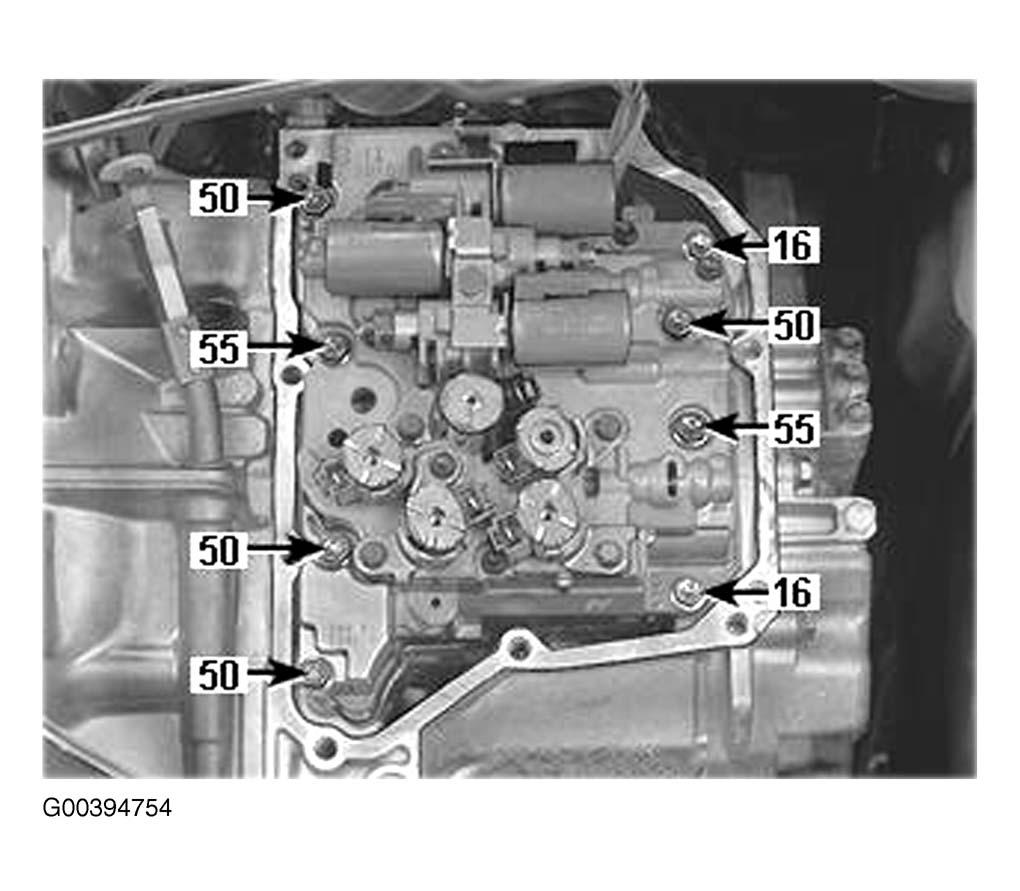

Fig 1: Locating Control System Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that there are no cracks on the top of the lever for the gear selector slider.
