Solenoid Control System, Replacing: Remove: Overview

WARNING: This page is about a different variant/trim than selected.

The connectors for the solenoid valves.

The screw for the oil temperature sensor holder. See Fig 1. Remove the sensor from the control system.

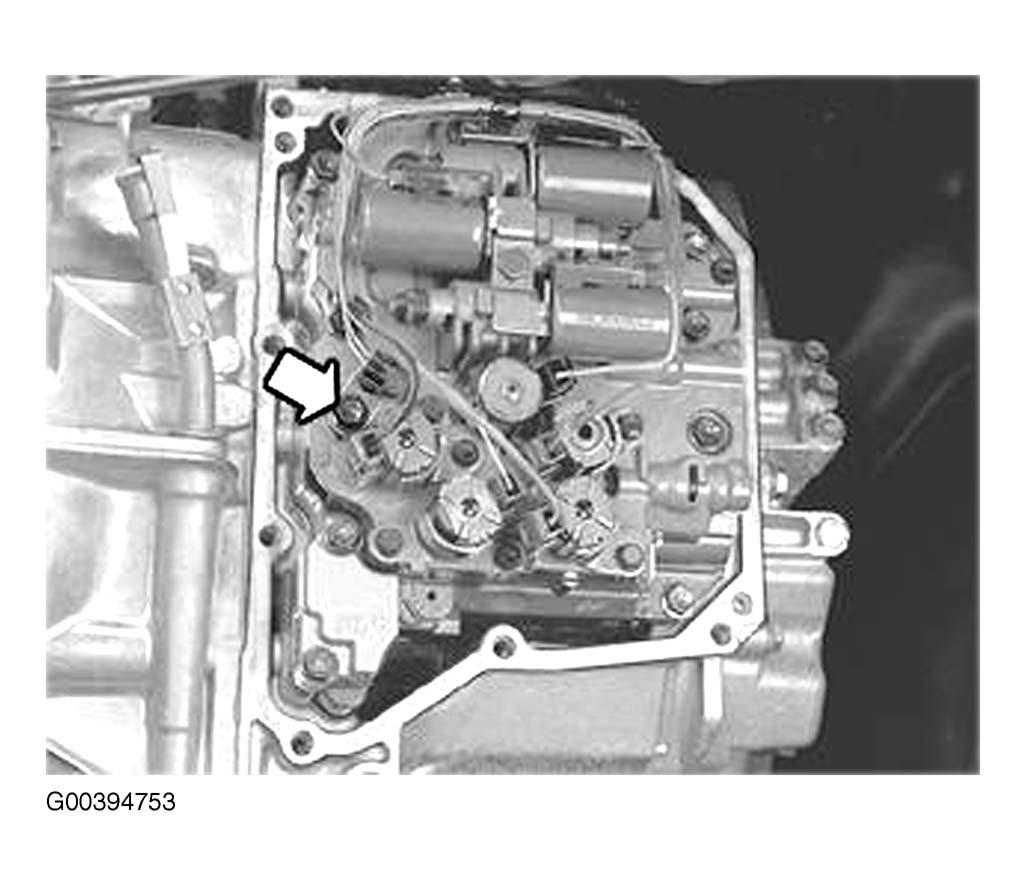

Fig 1: Locating Oil Temperature Sender Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

The cable harness from the holders on the control system.

Push the cable harness to one side.
