Disconnecting The Connectors

WARNING: This page is about a different variant/trim than selected.

Disconnect the connectors from the solenoids. See Fig 1.

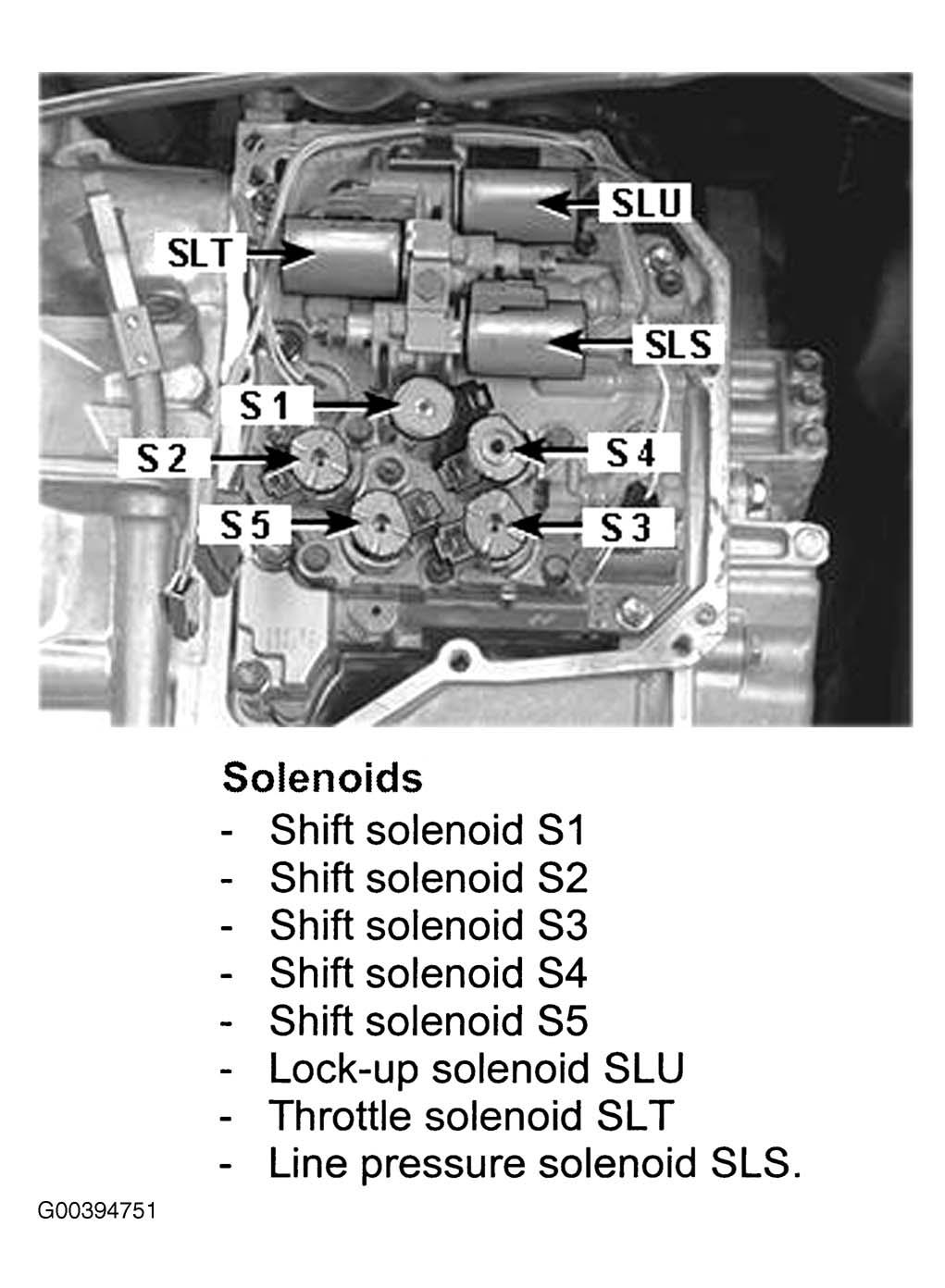

Fig 1: Identifying Control System Solenoids
G00394751Courtesy of VOLVO CARS OF NORTH AMERICA.
