Solenoid Control System, Replacing: Finishing

WARNING: This page is about a different variant/trim than selected.

Install the cable harness. Connect the connectors to the solenoids. Install the oil temperature sensor with the holder and the screw. Note that the length of the screw is given in mm. See Fig 1. Tighten to 10 Nm

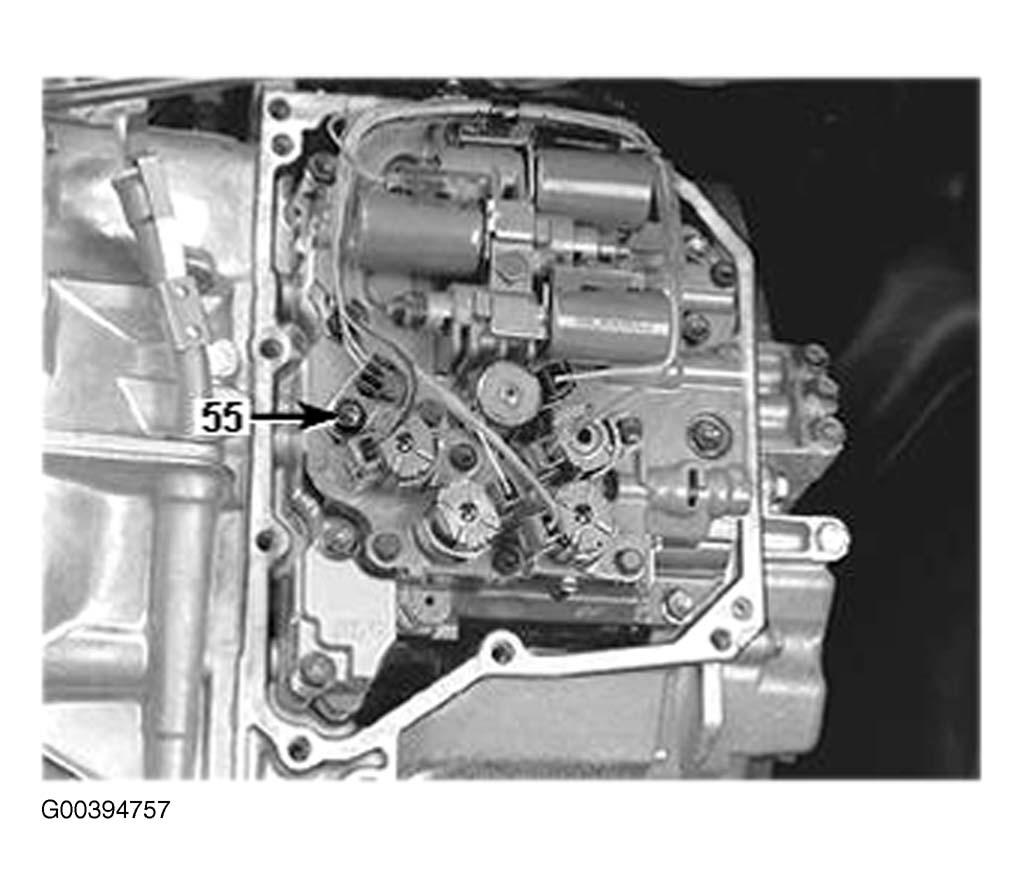

Fig 1: Installing Oil Temperature Sender Holder Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the cable harness on the holder. Check that the cable harness is correctly positioned. Reinstall. See: Installing The Control System Cover .
