Replacing The Sealing Ring For The Gear Shift Linkage Rod

Remove the old sealing ring. Use a small rounded off screwdriver. See Fig 1. Take care not to damage the rod. Smear a little automatic transmission fluid on the new sealing ring. Install the ring. Use drift 999 5476.

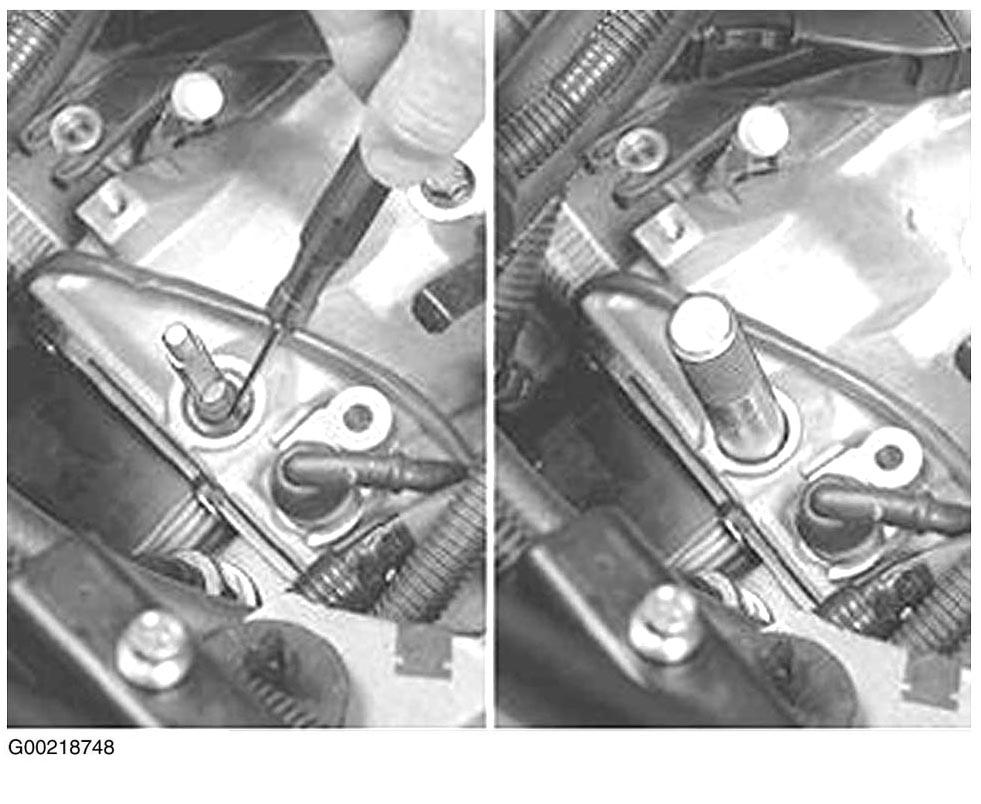

Fig 1: Removing/Installing Gearshift Shaft Sealing Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.
