Installing The Gear-Shift Position Sensor

Tighten the sensor screws lightly. Install the rubber washer, lock washer and the nut on the gear shift linkage rod connection. Tighten the nut. Lock the nut with the lock washer. See Fig 1.

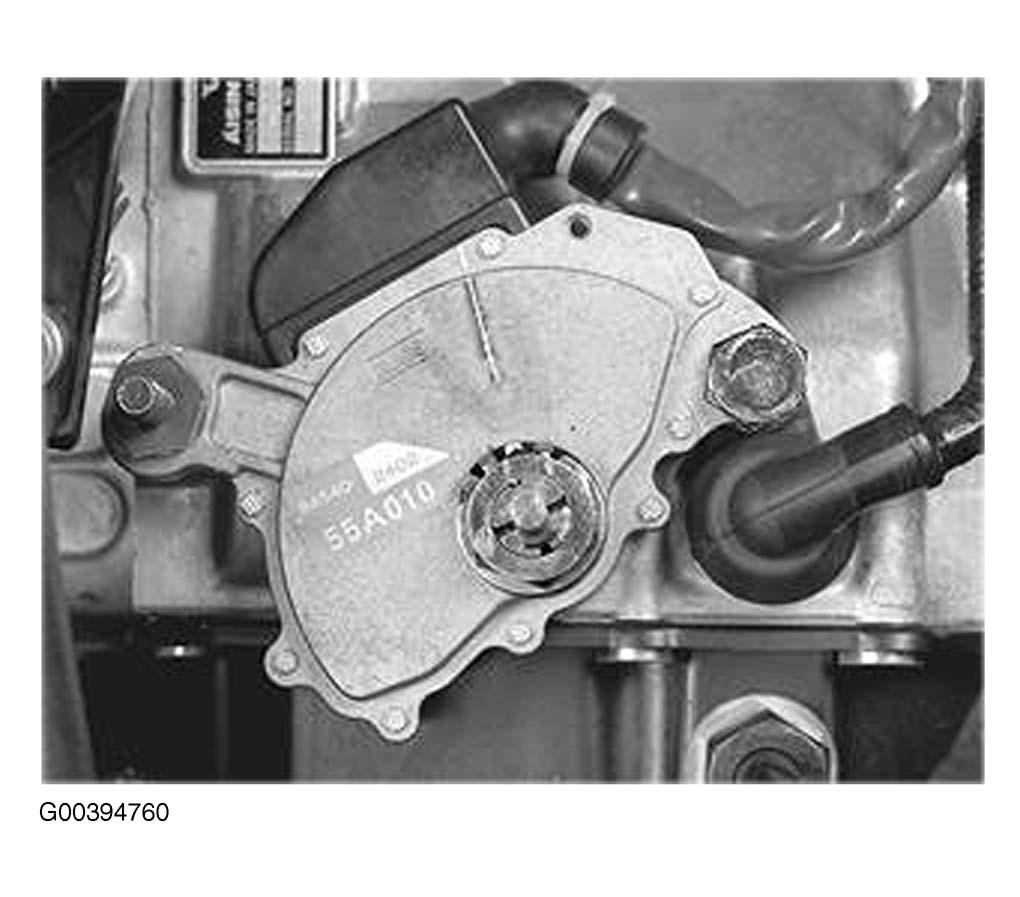

Fig 1: Installing Gear Shift Position Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.
