Removing The Differential Seals, Right-Hand Side
WARNING: This page is about a different variant/trim than selected.

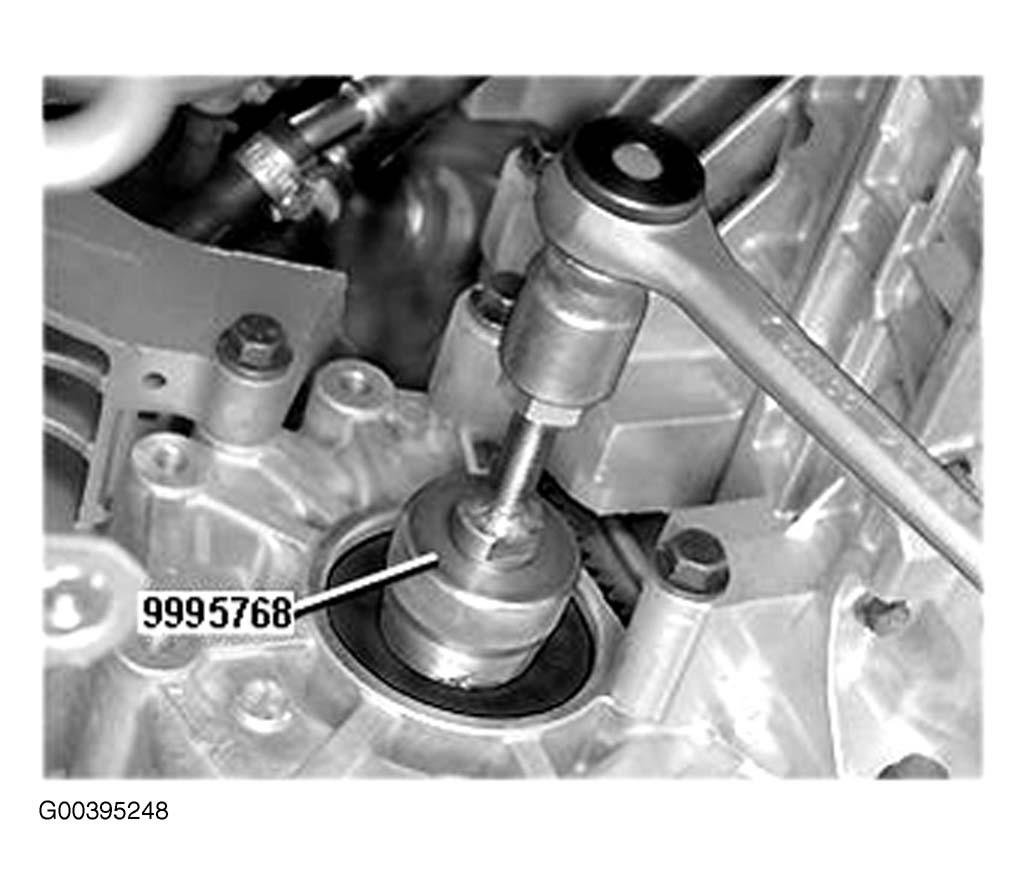

Place a container underneath the transmission. Install the cap nut for extractor 999 5768. See Fig 1.
Lightly grease the locating pin on the extractor.
Use a ratchet with an extension and socket. Press the extractor in against the seal at the same time as the extractor is turned.
Tighten so that the threaded cone screws firmly into the seal.
Remove the cap nut from the extractor. Install the extractor bracket and nut.
Remove the seal. Check that no seal residue is left.
Lubricate the edges of the new seal using automatic transmission fluid.

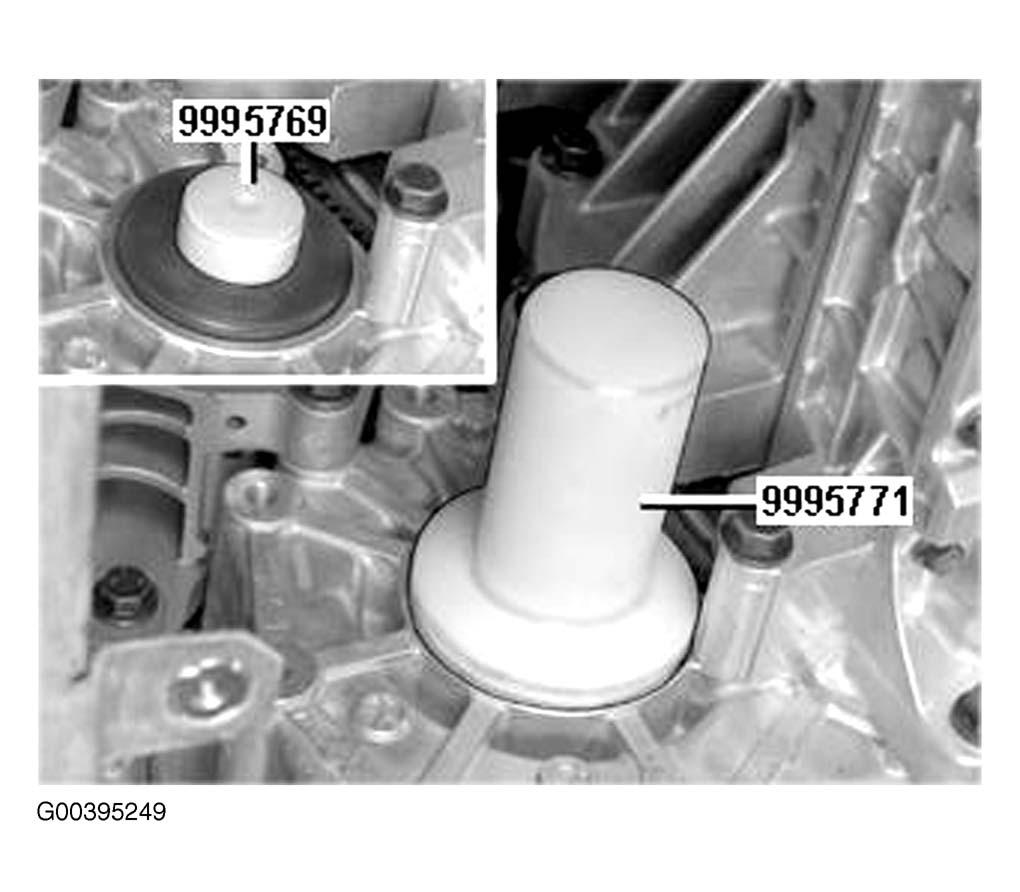

Install locating pin 999 5769. See Fig 2. Install the seal on the locating pin. Use drift 999 5771.
Tap in the seal until the drift is against the transmission. Remove the locating pin. Install the drive shaft.
