Removing The Gear Selector Cable

Remove the screws from the bracket for the gear selector cables. See Fig 1

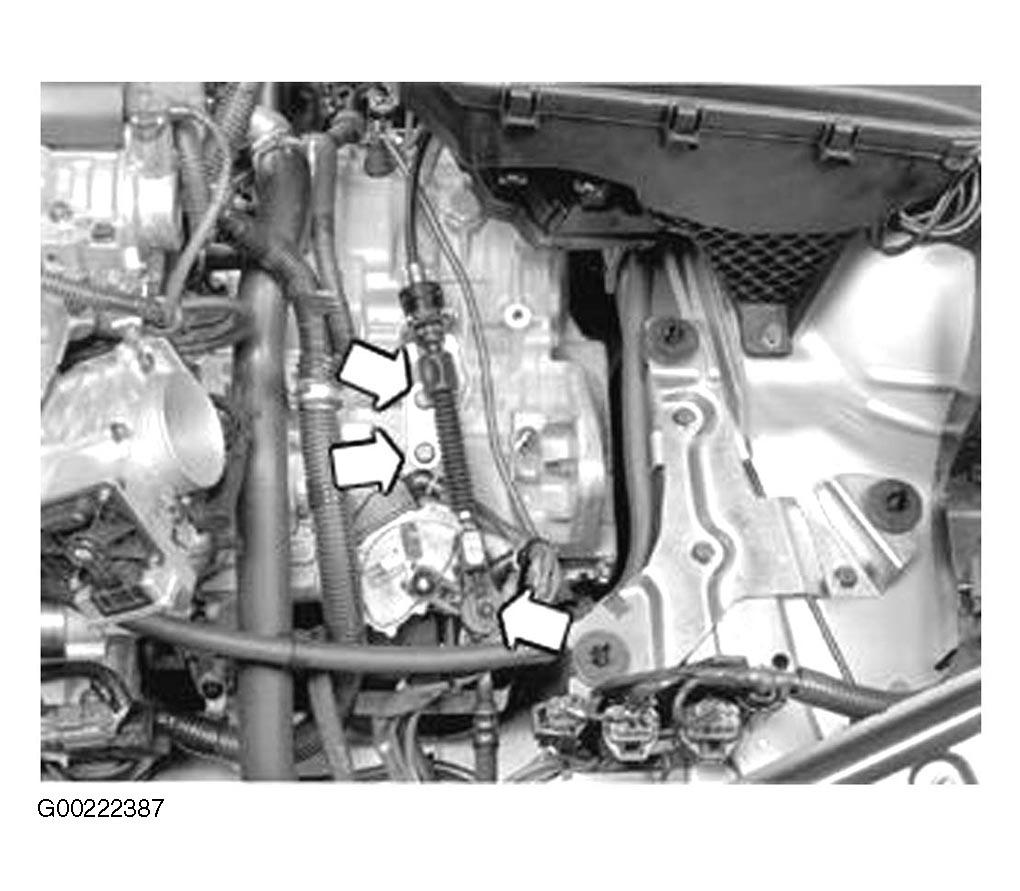

Fig 1: Identifying Gearshift Cable Mounting Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the cable from the lever. Use special tool 999 7077. See Fig 2 Remove the cable from the bracket. Move the cable to one side.

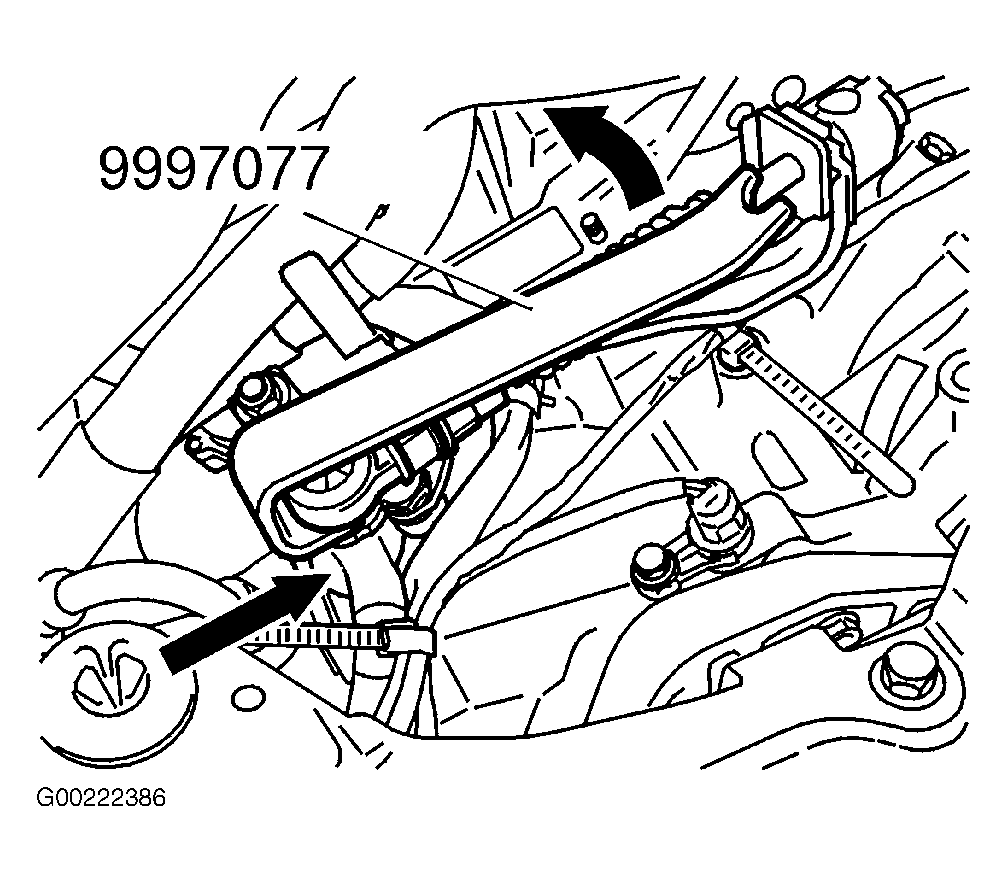

Fig 2: Detaching Gearshift Cable End

Courtesy of VOLVO CARS OF NORTH AMERICA.
