Checking The Setting
WARNING: This page is about a different variant/trim than selected.
NOTE:
When adjusting the gear-shift position sensor, press the tool down to the flat surfaces below the thread on the shaft.

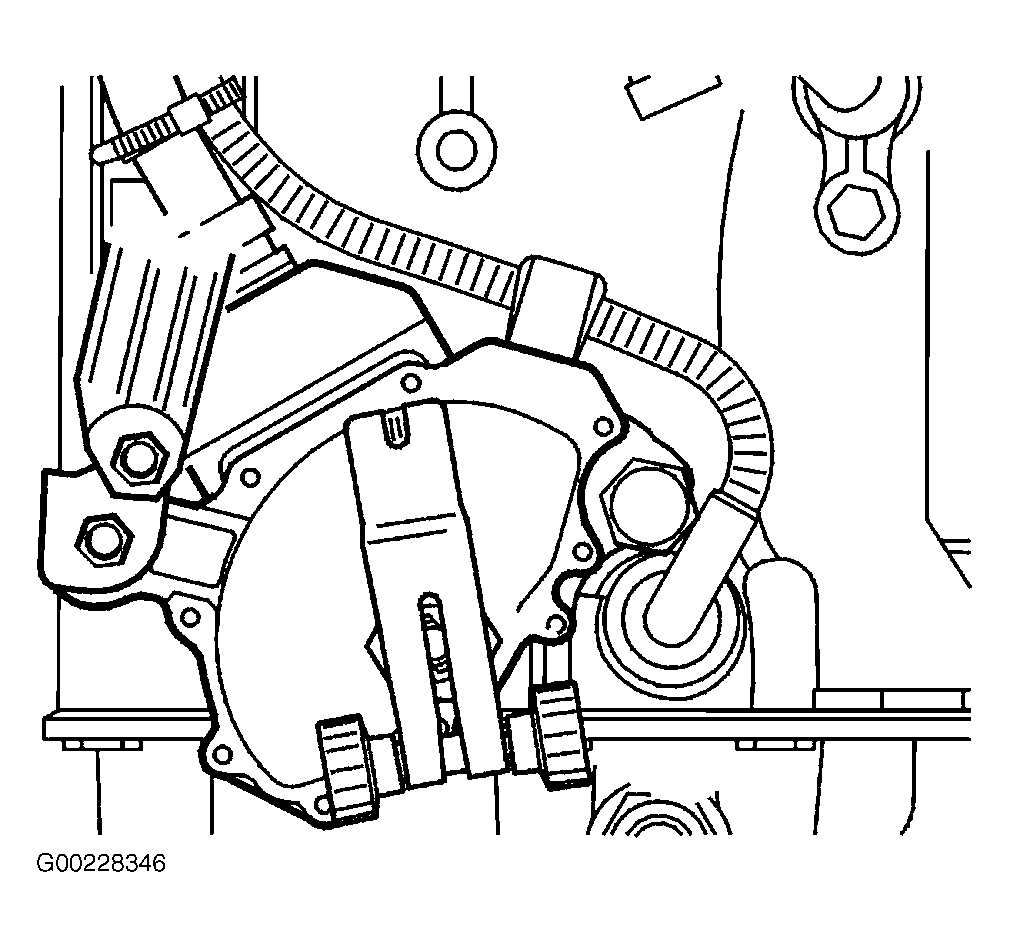

Remove the lever. Install adjustment tool 999 5475 on the gear shift linkage rod. See Fig 1. Check that the shaft is in the N position. The groove on the tool must align with the marking on the gear position sensor. If adjustment is required, see Adjusting The Gear-Shift Position Sensor .
