Location Of Components

WARNING: This page is about a different car, the 2006 Volvo S80 and 2005 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

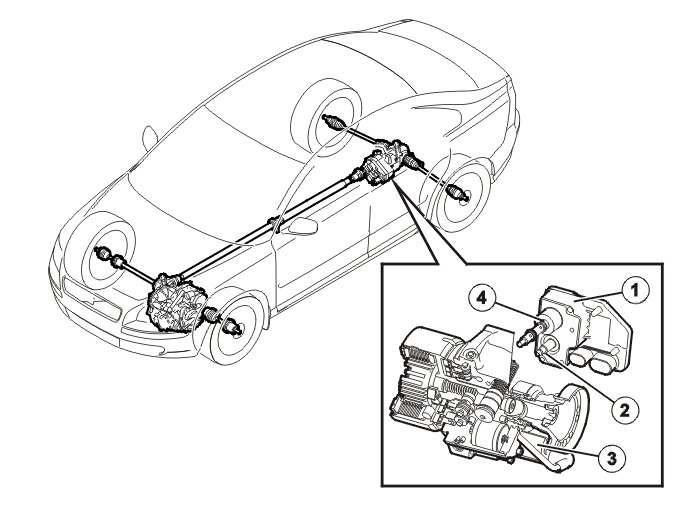

Fig 1: Identifying Rear Axle Components
GLL146180Courtesy of VOLVO CARS OF NORTH AMERICA.

Overview

  1. Differential electronic module (DEM)
  2. Oil pressure and temperature sensor
  3. Electric feed pump
  4. Control valve/axial solenoid.
