Integrated Relay/Fuseboxes, Wiring

WARNING: This page is about a different car, the 2006 Volvo S80 and 2005 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

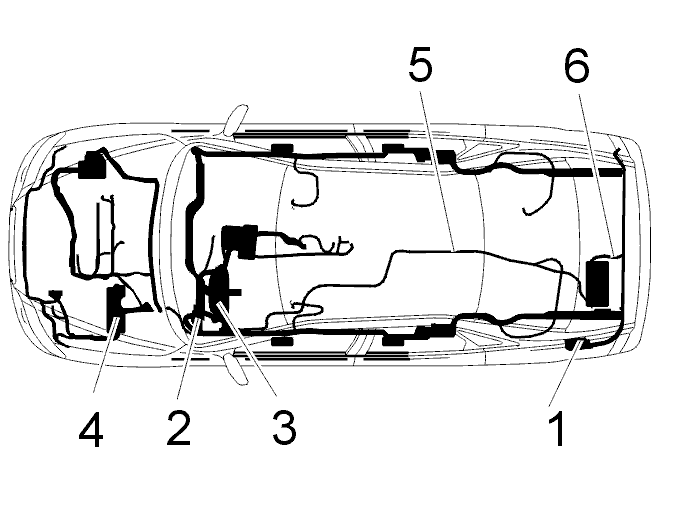

Fig 1: Identifying Wiring Locations
GLL104099Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Integrated relay/fusebox in the cargo compartment, rear electronic module
  2. Relay box in the passenger compartment, central electronic module (CEM)
  3. Fusebox in the passenger compartment
  4. Integrated relay/fusebox in engine compartment
  5. Cable harness
  6. Ground cable, battery.
