Removing ignition coils

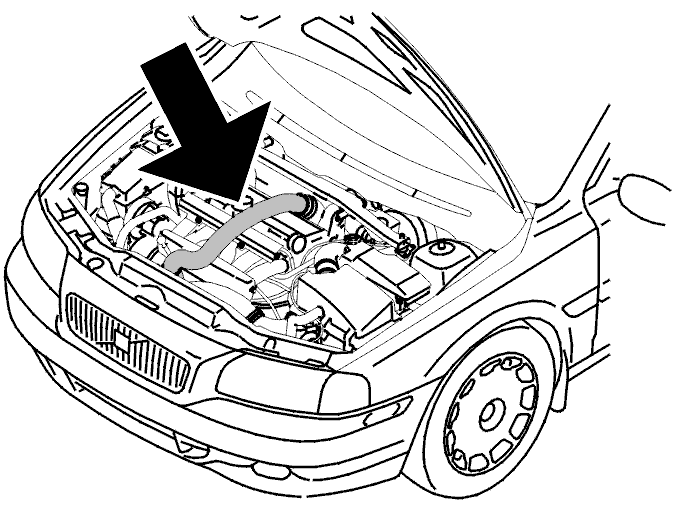

Fig 1: Identifying Charge Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the charge air pipe over the engine.

  Seal the openings

Fig 2: Identifying Ignition Coil, Connector, And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the upper timing belt cover
• the cover over the ignition coils

  Disconnect the ignition coil connector.

• the mounting screw. Pull the coil up.
