Installing ignition coils

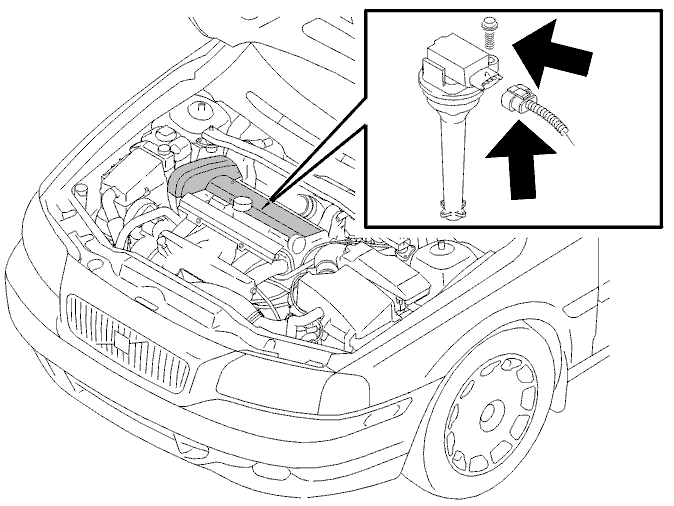

Fig 1: Identifying Ignition Coil, Connector, And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new  coil.

Align the coil and press it down. Install the screw. Tighten to 10 Nm  .

Press in the connector until a clicking sound is heard.

Install the cover over the ignition coil.

Install the upper timing belt cover.

Remove the seals from the charge air pipe. Reinstall the charge air pipe over the engine.
