Vehicles with fuel pump module located on fuel tank

Fig 1: Folding Rear Seat Backrest Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open Luggage Compartment Lid/tailgate

Remove:

Fold the rear seat backrest forward.

Remove the right part of the backrest

Use new bolt, 1 pc. M10.

Tighten with 50 Nm.

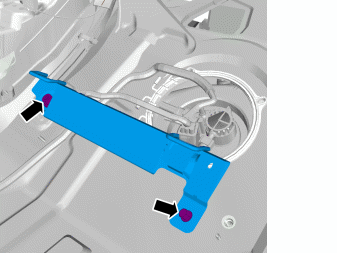

Fig 2: Identifying Child Seat Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove bracket for child seat from the floor.

Use new bolt and nut.

1 pc. M10, tighten with 50 Nm.

1 pc. M12, tighten with 80 Nm.

Move aside the insulating mat.

Fig 3: Identifying Right Floor Hatch Over Fuel Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Fig 4: Cable Harness Connectors By Wheel Housing/Sill And Fuel Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect:

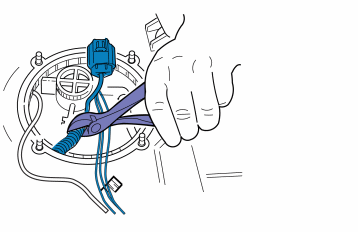

Fig 5: Cutting Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut off the cable harness as shown. This is done to make it easier to remove the cable harness.

Remove the remaining part of the cable harness with connector.

Fig 6: Identifying Control Module Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car

Remove:

Check that the fuel line is located in its clamps.
