Checking components and connectors

Check the connector for the outside temperature sensor. Check for contact resistance and oxidation.

The sensor may be defective if the above fault tracing and corrective action does not remedy the fault.

Remedy as necessary.

Other information

• To access and replace the outside temperature sensor for other models, see Outside temperature sensor door mirror, replacing
• See Contents .

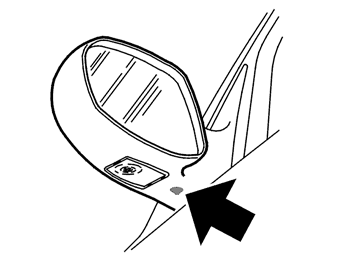

Fig 1: Identifying Outside Temperature Sensor Door Mirror

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
