Installing test equipment

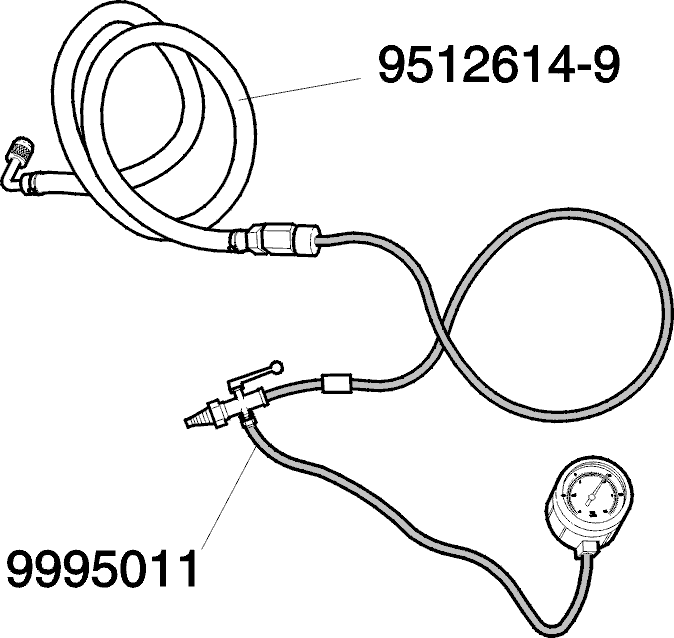

Fig 1: Identifying Fuel Pressure Gauge And Adapter Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Corrective actions:

• Assemble fuel pressure gauge 9995011 and new adapter hose 951 2614  .
• Use foam wrapping around the fuel pressure gauge and all metal joints to avoid scratching the interior of the car or damaging the exterior paintwork.
