Removing The Brake Caliper

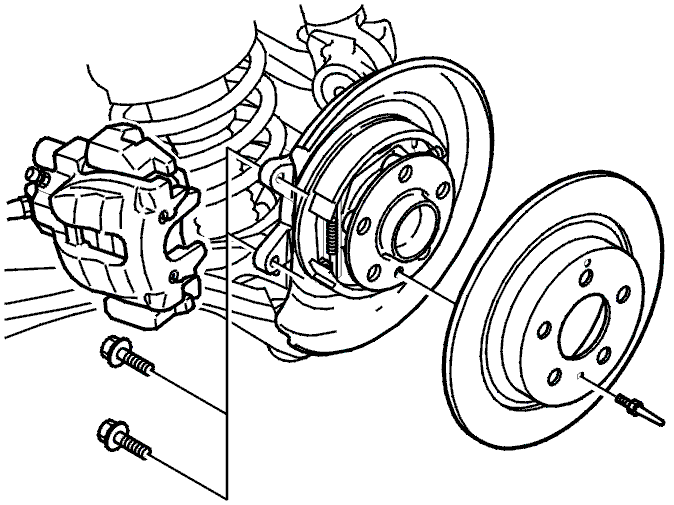

Fig 1: Brake Caliper Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the handbrake adjuster. See Release the handbrake adjuster .

Remove (on both sides):

• the wheel
• the ABS sensor and the ABS line from the bracket on the stub axle
• the brake caliper mounting screws.

Hang up the ABS line and the brake caliper. Use a piece of wire.
