Fuel Tank, Replacing: Preparation

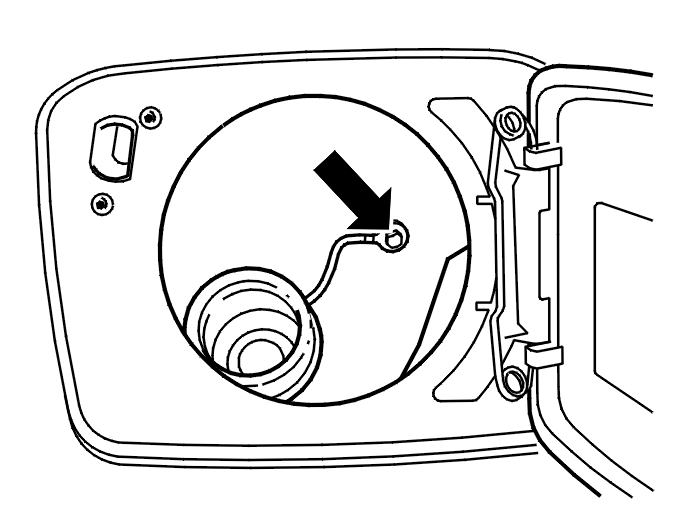

Fig 1: Identifying Ground Strap Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drain the fuel tank. See Fuel tank, draining .

Remove:

• the rubber seal around the fuel filler pipe
• the screw for the ground strip.

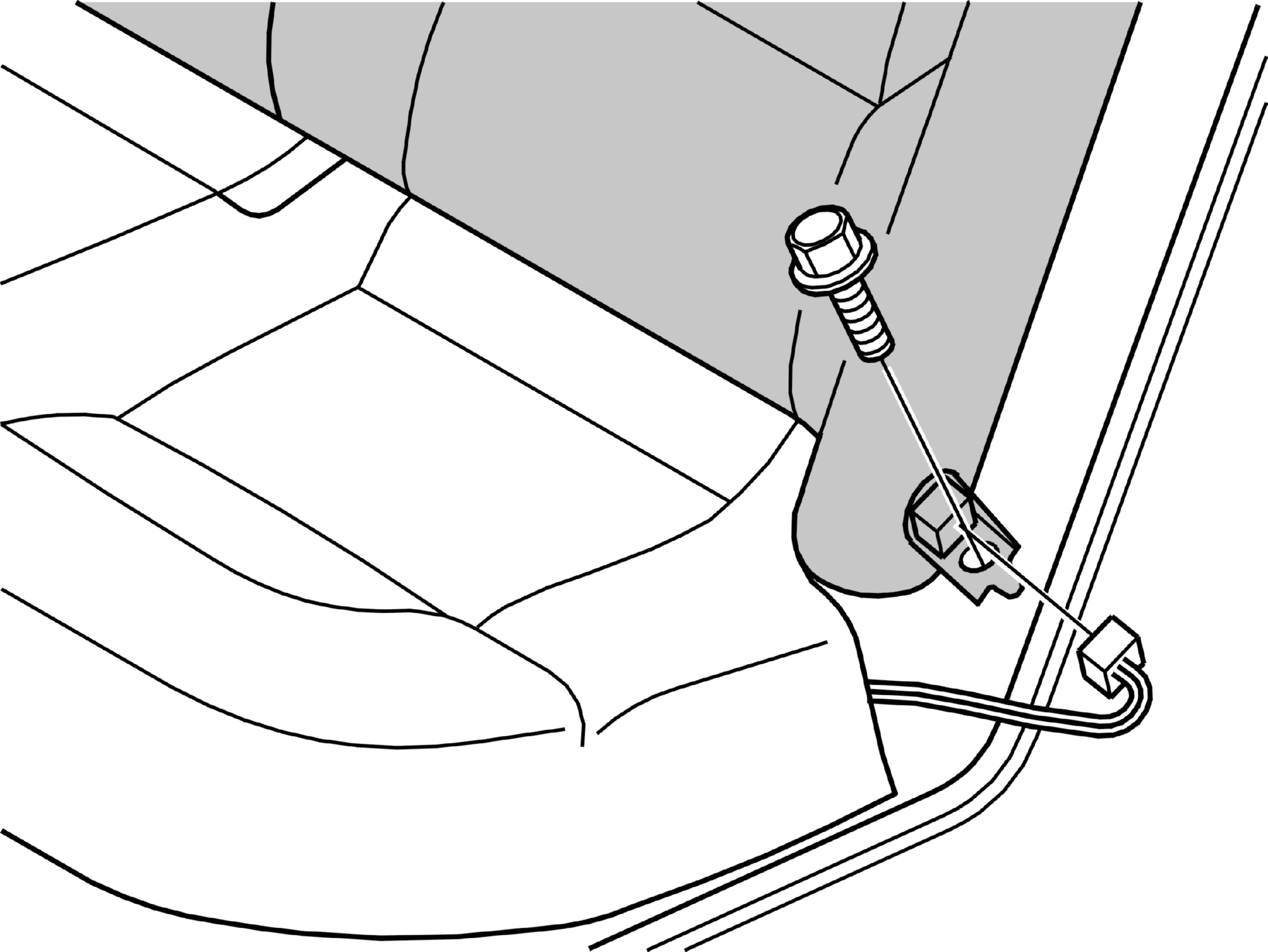

Fig 2: Identifying Screw And Connector At Seat Hinge

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector at the hinge.

Remove:

• the mounting screw for the hinge
• the screw for the hinge end mounting.

Release the strap/straps of the folding mechanism for the seat belt buckle. (Hooked into place on the lower edge of the backrest).

Lift out the backrest.
