Test Pressurizing The Tank System: Preparation

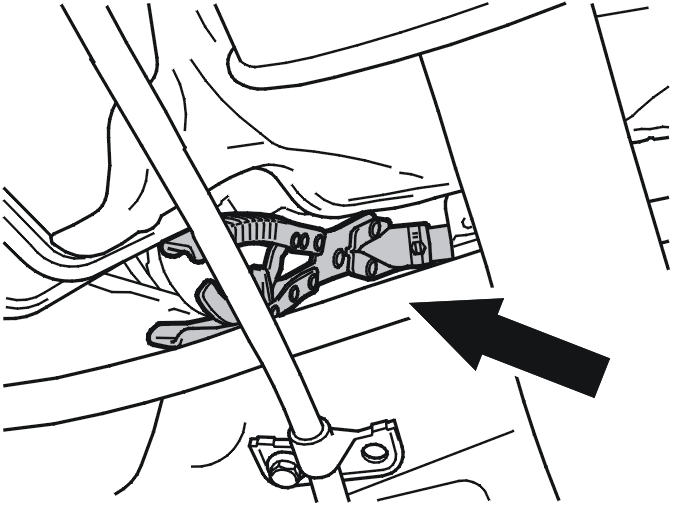

Fig 1: Blocking Hose Between Leak Diagnostic Module And Leak Diagnostic Module Filter By Clamping Hose Using Hose Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Block the hose between the leak diagnostic module and the leak diagnostic module filter by clamping the hose using hose clips.
