Check For Leaks In Plastic Hose To Carbon Canister

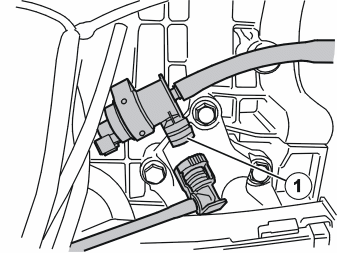

Fig 1: Identifying Carbon Canister

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the smoke machine's tapered nozzle in the line that was installed with quick-coupling in the EVAP-pump (1). Lift up the vehicle from the Jacking points, body .

Fill the system with smoke. Check that there are no leaks in the hose to the carbon canister.
