Home >> Volvo >> 2004 >> S80 Base, 2.5 59, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Intake And Exhaust System - Removal, Replacement And Installation >> Turbocharger (B6294T; 2002-2006) >> Turbocharger (TC), Replacing >> Removing The Turbocharger (TC) >> Cleaning

Removing The Turbocharger (TC): Cleaning

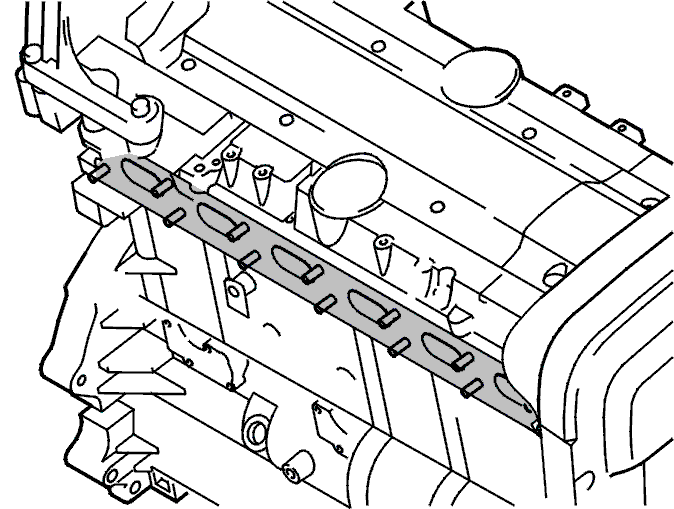

Fig 1: Identifying Gasket
GLL101449Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the old gaskets.

Clean the gasket faces thoroughly. Use a razor blade or a gasket scraper.

Ensure that all the studs are tightened in the cylinder head. Tighten to 20 Nm  .

Install new gaskets.
