Removing Components

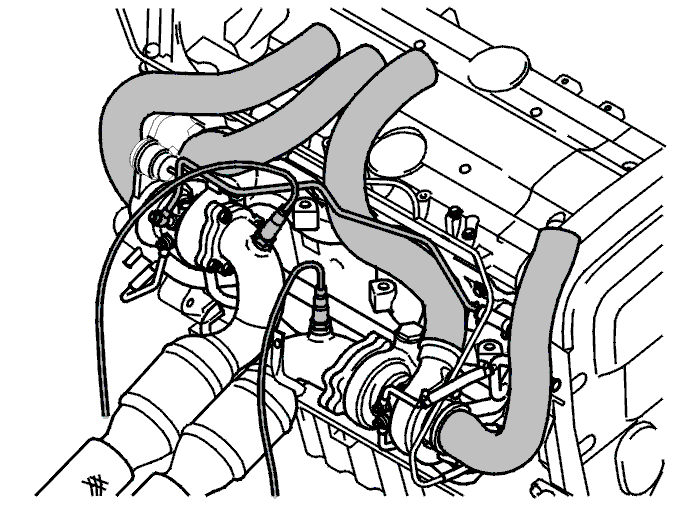

Fig 1: Intake And Charge Air Pipes, Turbocharger And Upper Heated Oxygen Sensors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the intake and charge air pipes from the turbocharger (TC). Seal the openings in the turbocharger (TC)
• the heat deflector plates
• the upper heated oxygen sensors (HO2S)
• the pipe screws for the coolant pipes
• the upper coolant pipe
• the pipe screw for the oil pressure pipe
• turbocharger (TC) 1 only. The clamps for the vacuum pipe in the turbocharger (TC).
