Installing The Turbocharger (TC)

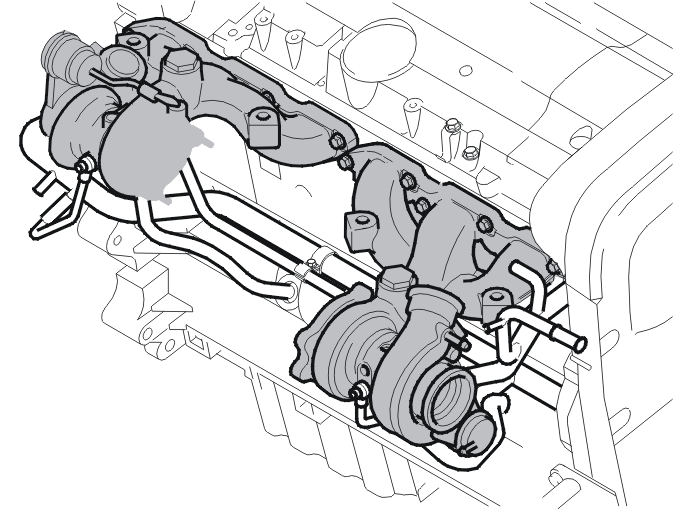

Fig 1: Removing/Installing Turbocharger (TC)
GLL101448Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the studs using paste 116 1408  . Avoid skin contact with the paste.

Hold turbocharger (TC) in position. Install new nuts. Tighten to 25 Nm  . Install the oil pressure pipe using the pipe screws and new gasket washers. Do not tighten yet.
